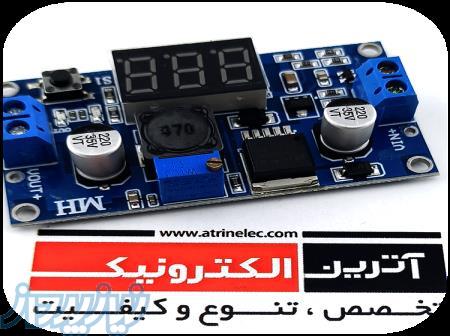

ماژول LM2596 Voltmeter

ماژول DC به DC قابل تنظیم با نماشگر ولتاژ و جریان دهی 3 آمپر - ولتاژ قابل تنظیم خروجی از 1.3 تا 37 ولت LM2596 DC 4.0~40 to 1.3-37V LED Voltmeter Buck Step-down Power Converter
دریافت دیتا شیت
Input voltage range:4-40VDC
Output voltage range:1.25-37DC adjustable
Output current:2A Voltmeter range:0 to 40V,error +-0.1V
Input reverse polarity protection
Built in output short protection function
Built in thermal shut dowen function
LED digital voltmeter tube,the accuracy is adjustable function,can be aimed at your multimeter adjustable accurate
Press the right key to let the dispaly show the input or output voltage.when the right" OUT" led light,it shows output,the left "in" led show input
