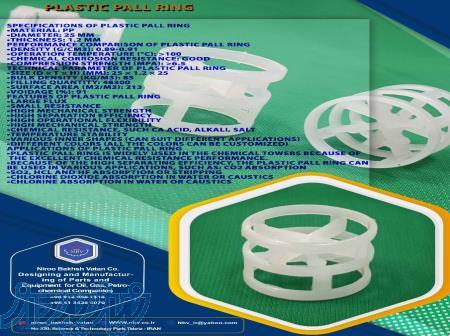

Plastic Pall Ring

Plastic Pall Ring

Specifications of plastic pall ring
•Material: PP-PE-RPP-PVC-CPVC-PVDF
•Diameter: 25 mm, 50 mm
•Thickness: 1.2 mm, 1.5mm

Performance comparison of plastic pall ring
•Density (g/cm3): 0.89-0.91,
•Operation temperature (°C): >100
•Chemical corrosion resistance: Good
•Compression strength (MPa): >6.5

Technical Parameter of plastic pall ring
•Size (D × T × H) (mm): 25 × 1.2 × 25, 50 × 1.5 × 50
•Bulk density (kg/m3): 85, 60
•Filling quantity: 48300, 6300
•Surface area (m2/m3): 213, 100
•Voidage (%): 91, 92

Features of plastic pall ring
•Large flux
•Small resistance
•High mechanical strength
•High separation efficiency
•High operational flexibility
•High mechanical strength
•Chemical resistance, such CA acid, alkali, salt
•Temperature stability
•Various inner shapes (Can suit different applications)
•Different colors (All the colors can be customized)

Applications of plastic pall ring
•Plastic pall ring is widely used in the chemical towers because of the excellent chemical resistance performance.
•Because of the high separating efficiency, the plastic pall ring can be used in various applications, such as: CO2 absorption
•SO2, HCL and HF absorption or stripping
•Chlorine dioxide absorption in water or caustics
•Chlorine absorption in water or caustics
