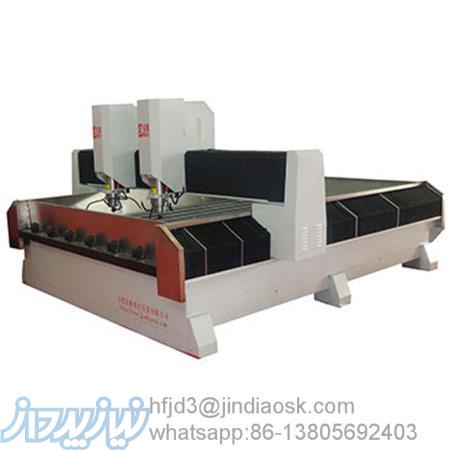

Heavy Duty Stone CNC Router Machine (Stainless Tank - Free Rusty)

BD1325 Heavy Duty Stone CNC Router Machine (Stainless Tank - Free Rusty)

Applicable Scope:

Widely used for the processing of marble, Shoushan stone, granite, bluestone, jade, crystal, stone tablet, agate, ink stand, copper sheet, aluminum sheet, etc..

Performance Features:
1. Imported linear square rails, double-row four-column ball bearing slide blocks, big loading capacity, smooth operation, high precision, long life.
2. High-power double spindles, strong power.
3. Advanced numerical control system, simple operation, easy maintenance, CNC dividing head optional, user-friendly design can meet the diverse needs of customers.
4. Good compatibility. It is compatible with any advanced CAD/CAM software, such as Type3/ ArtCAM/ CAXA/ UG / pro-e/ Mastercam/ JD/ Wentai, etc..
5. All models can be customized as per the buyers' special requirement.

Technical Parameters:
Model
1325
1825
2025
2030
Working Stroke
1300*2500mm
1800*2500mm
2000*2500mm
2000*3000mm
Z Axis Working Stroke
100-500mm
Spindle Power
3KW/ 4.5W/ 5.5KW frequency air-cooling spindle
（Air-cooling motor, or Italy imported HSD/ELTE/ Colombia motor is optional）
Max Motion Speed
25 m/min
Max Proceeding Speed
15 m/min
Spindle Rotational Speed
0-24000 rpm/Min
Engraving Tool
Φ3.175mm, Φ4mm, Φ6mm, Φ12.7mm
Dictate Format
G-Code / HPGL
Resolution
0.01mm
Controlling System
NC Studio (DSP)
