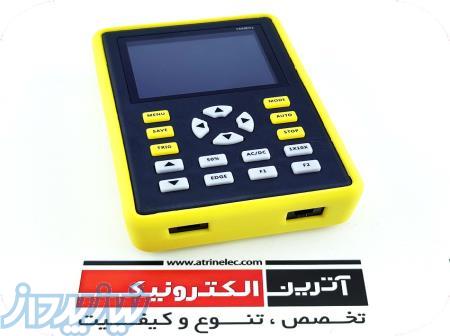

اسیلوسکوپ دیجیتال تک کانال 100MHzمدلFNIRSI-5012H(قابل حمل)
آگهی رایگان
بروزرسانی :
شنبه 15 مهر 1402
اسیلوسکوپ قابل حمل دیجیتال تک کانال 100 مگاهرتز-باتری 3000mah-8 ساعت استفاده -سرعت نمونه برداری500M -صفحه نمایش 2.4 اینچی با کیفیت-اقتصادی و کاربردی
اسیلوسکوپ اقتصادی و مقرون به صرفه میباشد ، پهنای باند 100 مگاهرتز، 500M، از خروجی شکل موج دلخواه پشتیبانی می کند.
باتری 3000mah استفاده تا 8 ساعت
4 ساعت شارژ کامل
FNIRSI-5012H 2.4-inch Screen Digital Oscilloscope 500MS/s Sampling Rate 100MHz Analog Bandwidth Support Waveform Storage
موارد مصرف :
این یک ابزار راه اندازی مفید برای زمینه های مختلف مانند ارتباطات، هوافضا، دفاع ملی، سیستم های تعبیه شده، کامپیوتر، تحقیقات و آموزش است.
مشخصات کامل و امکانات :
Description:
The FNIRSI-5012H is a versatile, highly practical, cost-effective handheld oscilloscope for the maintenance industry and the R&D industry with FNIRSI's real-time sampling rate of up to 500MS/s and 100MHz analog bandwidth. With full trigger function (single, normal, automatic), it can be used freely for both periodic analog signals and non-periodic digital signals. The built-in high voltage protection module can withstand up to 400V continuous voltage and 600V peak voltage. Don't worry about the oscilloscope burnout caused by the high voltage not being probed to the 10X position. Large time base scan mode that monitors slow level changes. Equipped with high-efficiency one-button AUTO, the measured waveform can be displayed without complicated adjustment. Display high-definition LCD screen with 2.4-inch 320*240 resolution. Extremely convenient and fast waveform storage function, built-in 64M storage space, can store up to 2000 waveform pictures, the storage process is simple and fast, save the current waveform anytime and anywhere, just one touch, no cumbersome tips and choices, quietly It is very convenient to save the current waveform. Powerful waveform file manager, support for thumbnail browsing, viewing, detail viewing, page turning, deletion and more. Built-in 3000mah high-quality lithium battery, can be used continuously for 8 hours when fully charged. The body is equipped with high-quality silicone protective cover, non-toxic and lead-free environmental protection, anti-skid, anti-shock and shockproof, comprehensive protection of the fuselage, soft texture, feel very comfortable.
Key features:
1:Intelligent anti-burn,1X Can withstand up to 600V withstand voltage
2:Afterglow display technology
3:2.4 inch color display screen
4:100MHz analog bandwidth @ 500MS/s sampling rate(1X = 5MHz,10X = 100MHz)
5:One-button waveform storage
6:Built-in 64M storage space, the maximum storage of 2000 waveform pictures
7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions
8:High measurement voltage range, 1X can measure 0 ~ 80 V, 10X can measure 0 ~ 800V
9:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time
10:At any time, the waveform display (pause function) is frozen
11:Equipped with high efficiency One-button AUTO
12:Complete triggering function (single, normal, automatic)
13:Built in 3000mAh rechargeable lithium battery,Fully charged for 8 hours of continuous use
14:Screen brightness adjustment
15:Memory compression technology, waveform refresh screen does not flicker
16:Anti-slip anti-drop silicone sleeve
17:Ultra small volume, easy to carry
اسیلوسکوپ اقتصادی و مقرون به صرفه میباشد ، پهنای باند 100 مگاهرتز، 500M، از خروجی شکل موج دلخواه پشتیبانی می کند.
باتری 3000mah استفاده تا 8 ساعت
4 ساعت شارژ کامل
FNIRSI-5012H 2.4-inch Screen Digital Oscilloscope 500MS/s Sampling Rate 100MHz Analog Bandwidth Support Waveform Storage
موارد مصرف :
این یک ابزار راه اندازی مفید برای زمینه های مختلف مانند ارتباطات، هوافضا، دفاع ملی، سیستم های تعبیه شده، کامپیوتر، تحقیقات و آموزش است.
مشخصات کامل و امکانات :
Description:
The FNIRSI-5012H is a versatile, highly practical, cost-effective handheld oscilloscope for the maintenance industry and the R&D industry with FNIRSI's real-time sampling rate of up to 500MS/s and 100MHz analog bandwidth. With full trigger function (single, normal, automatic), it can be used freely for both periodic analog signals and non-periodic digital signals. The built-in high voltage protection module can withstand up to 400V continuous voltage and 600V peak voltage. Don't worry about the oscilloscope burnout caused by the high voltage not being probed to the 10X position. Large time base scan mode that monitors slow level changes. Equipped with high-efficiency one-button AUTO, the measured waveform can be displayed without complicated adjustment. Display high-definition LCD screen with 2.4-inch 320*240 resolution. Extremely convenient and fast waveform storage function, built-in 64M storage space, can store up to 2000 waveform pictures, the storage process is simple and fast, save the current waveform anytime and anywhere, just one touch, no cumbersome tips and choices, quietly It is very convenient to save the current waveform. Powerful waveform file manager, support for thumbnail browsing, viewing, detail viewing, page turning, deletion and more. Built-in 3000mah high-quality lithium battery, can be used continuously for 8 hours when fully charged. The body is equipped with high-quality silicone protective cover, non-toxic and lead-free environmental protection, anti-skid, anti-shock and shockproof, comprehensive protection of the fuselage, soft texture, feel very comfortable.
Key features:
1:Intelligent anti-burn,1X Can withstand up to 600V withstand voltage
2:Afterglow display technology
3:2.4 inch color display screen
4:100MHz analog bandwidth @ 500MS/s sampling rate(1X = 5MHz,10X = 100MHz)
5:One-button waveform storage
6:Built-in 64M storage space, the maximum storage of 2000 waveform pictures
7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions
8:High measurement voltage range, 1X can measure 0 ~ 80 V, 10X can measure 0 ~ 800V
9:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time
10:At any time, the waveform display (pause function) is frozen
11:Equipped with high efficiency One-button AUTO
12:Complete triggering function (single, normal, automatic)
13:Built in 3000mAh rechargeable lithium battery,Fully charged for 8 hours of continuous use
14:Screen brightness adjustment
15:Memory compression technology, waveform refresh screen does not flicker
16:Anti-slip anti-drop silicone sleeve
17:Ultra small volume, easy to carry
