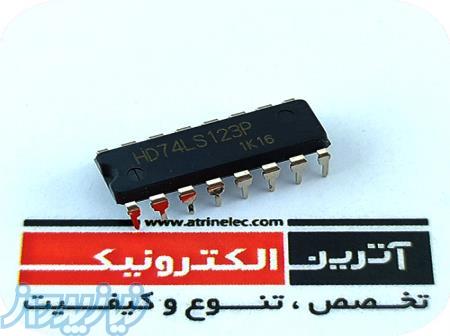

74LS123 HD74LS123P

Dual Retriggerable One-Shot with Clear and Complementary Outputs آی سی مولتی ویبراتور دوبل



مشخصات کلی

نوع نصب : DIP

پکیج : DIP-16

نوع : تجاری

نوع عملکرد(Function Type) : مولتی ویبراتور مونواستابل

مشخصات تغذیه

حداکثر ولتاژ تغذیه تکی (ولت) : 5.25

سایر مشخصات محصول

تعداد کانال‌ها : 2

نوع خروجی: Push-Pull

پردازش : Bipolar (دوقطبی)

IOL (Max) (mA) : 16

IOH (Max) (mA) : -0.8

خانوادۀ منطق: TTL

فناوری منطق: Transistor-Transistor Logic

نوع ورودی : Schmitt-Trigger

tpd (تأخیر پخش/تأخیر گیت): بیشتر از 50ns

General Description
The DM74LS123 is a dual retriggerable monostable multivibrator
capable of generating output pulses from a few
nano-seconds to extremely long duration up to 100% duty
cycle. Each device has three inputs permitting the choice of
either leading edge or trailing edge triggering. Pin (A) is an
active-LOW transition trigger input and pin (B) is an active-
HIGH transition trigger input. The clear (CLR) input terminates
the output pulse at a predetermined time independent
of the timing components. The clear input also serves
as a trigger input when it is pulsed with a low level pulse
transition ( ). To obtain the best trouble free operation
from this device please read the operating rules as well as
the Fairchild Semiconductor one-shot application notes
carefully and observe recommendations.

Features

DC triggered from active-HIGH transition or active-LOW
transition inputs

Retriggerable to 100% duty cycle

Compensated for VCC and temperature variations

Triggerable from CLEAR input

DTL, TTL compatible

Input clamp diodes
