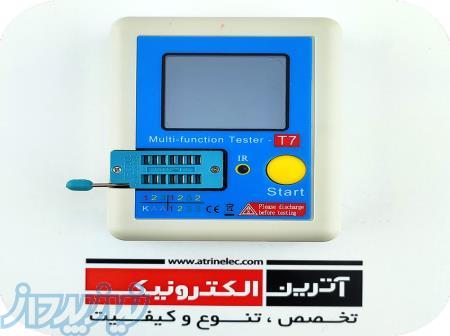

LCR-TC تستر قطعات

تستر قطعات مختلف مانند ترانزیستور،دیود،خازن،سلف،ترایاک،تریستور و ... نمایشگر رنگی 1.8 اینچی - مدل حرفه ای تر LCR-TC1 1.8inch Colorful Display Multi-functional TFT Backlight Transistor Tester for Diode Triode Capacitor Resistor Transistor
Characteristics:
It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.
It can also be used to detect infrared wave shapes.
It can also detect Zener diode and has the function of self-calibration.
After detection, align the infrared remote controller with the "IR" light, press the button in the remote controller, if the detector successfully decode it, it will display the data code and infrared wave form.
One button operation, Automatically detect and shutdown, and you can press the multi-function button to close the detector too.
Put the pins of component in corresponding area, then dial the small handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.
Not like the usual black and white screen, this detector will show results in color.
Specifications:
Display: 1.8Inch TFT Screen
Diode Range:<4.5V
Zener Diode: Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT < 6mA
Capacitance:25pF-100mF
Resistance:0.01-50MΩ
Inductance:0.01mH-20H
Battery: 0.1-4.5V
Power Mode: Rechargeable Lithium Battery (INCLUDED)
Item Size: 8.8x8x2.8cm / 3.47x3.15 x 1.10in
Item Weight: 111.5g / 3.94oz
Package Size: 14.5x12x2.7cm / 5.71x4.73 x 1.06in
Package Weight: 114g / 4.02oz
